Automatic Screen With Industrial Foiler

Auto Screen With Industrial Foiler

INDIACOT

A fully automatic stop-cylinder screen line that brings screen UV spot varnish and cold foil stamping into one inline pass. Built on classic stop-cylinder turning technology with offset-grade registration, it runs paper packaging, labels and ceramic & glass decal (flowered) paper at production speed — single operator, automatic feed to delivery.

Process
Screen UV · Cold foil
Max sheet
750 × 1060 mm
Technology
Stop-cylinder
Speed
up to 4000 sheets/h
Get a Quote → WhatsApp us Call
Auto Screen With Industrial Foiler machineAuto Screen With Industrial Foiler
A What it's for

Built for these jobs.

Where the Auto Screen With Industrial Foiler earns its place on the floor — the work it runs every day.

Paper packagingFolding cartonsLabelsDecal / flowered paperCeramic & glass decalsUV spot glazing
B How it works

From plain sheet to finish.

Four stages — the Auto Screen With Industrial Foiler inline process in short.

01

Stop-cylinder feed

Sheets are gripped and registered on the stop-cylinder for offset-grade accuracy.

02

Screen coat

The rotary screen lays UV varnish or the cold-foil adhesive exactly where it's wanted.

03

Cold foil transfer

Cold foil is bonded to the coated areas, then lifted away.

04

UV cure & deliver

Inline UV curing locks the finish; sheets stack automatically at delivery.

C See it in action

The machine, on our floor.

Live footage and detail shots of the Auto Screen With Industrial Foiler.

Auto Screen With Industrial Foiler · running

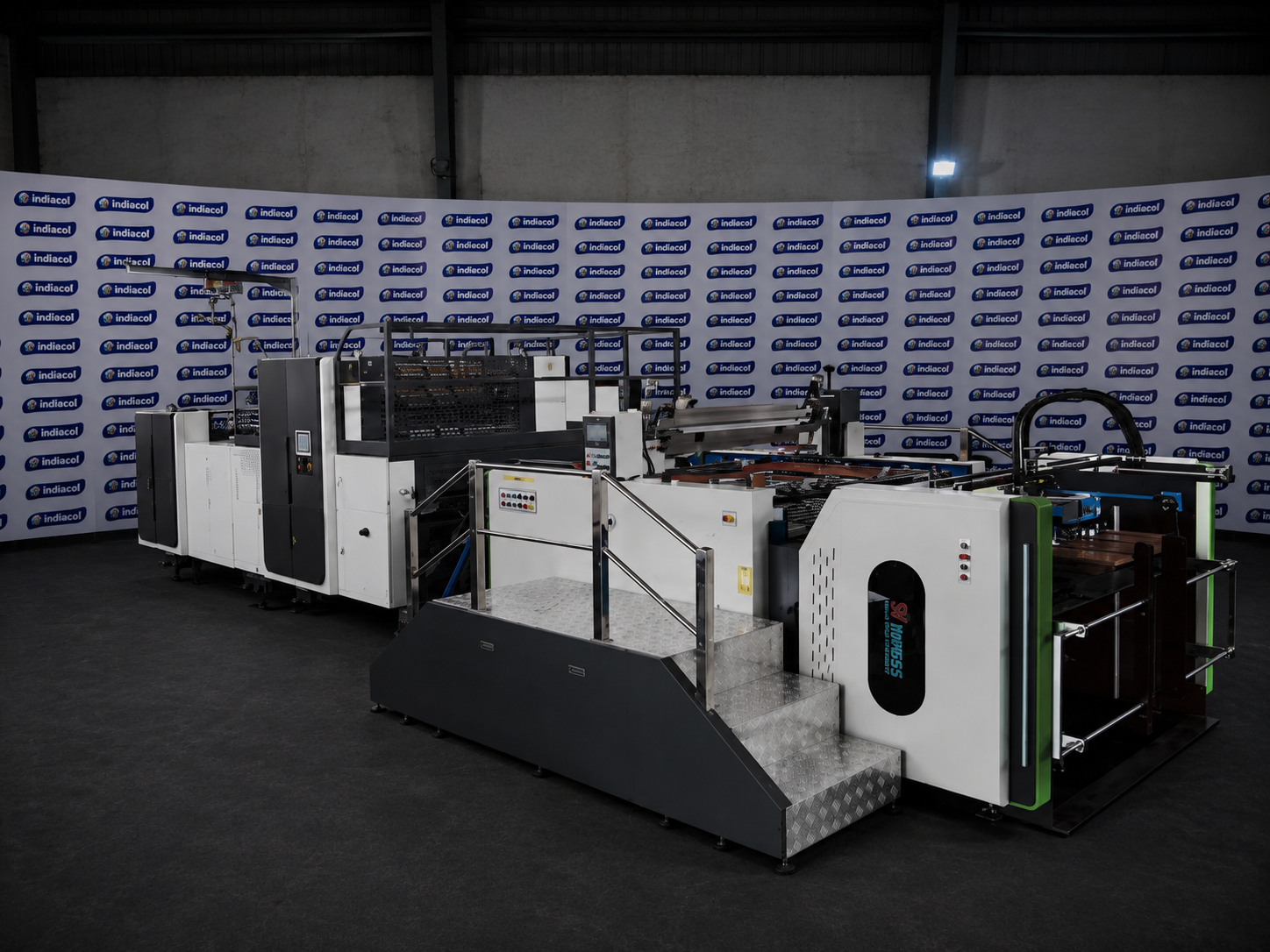

Auto Screen With Industrial Foiler — line view

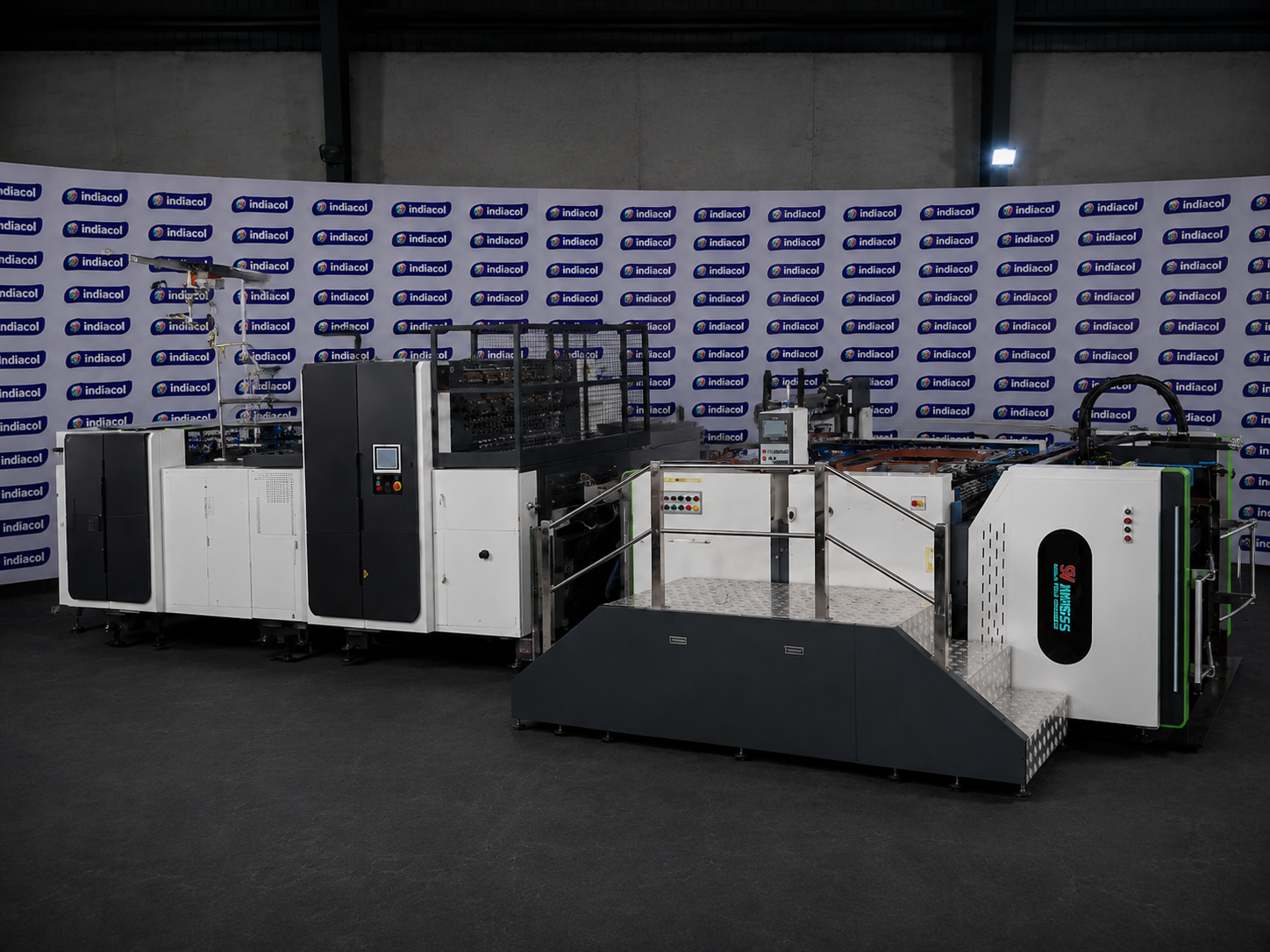

Auto Screen With Industrial Foiler — delivery end
D Specifications

The technical sheet.

Indicative figures — exact configuration, sheet size and speed are quoted to your requirement.

ModelAuto Screen With Industrial Foiler
FunctionsScreen UV varnish · Cold foil
TechnologyAutomatic stop-cylinder
Max sheet size750 × 1060 mm
Min sheet size350 × 500 mm
Max printing area740 × 1050 mm
Substrate thickness0.1 – 1.0 mm
Max speedup to 4000 sheets/h
Registration±0.1 mm
ControlPLC · touch screen
SubstratesPaper · board · decal paper
OperationFully automatic · single operator
E The output

Finishes it produces.

Real samples produced on Indiacot machines.

F Questions

Common questions.

What buyers ask most before choosing this machine.

What does the GST1060 do?

It is a fully automatic stop-cylinder screen line that combines UV spot varnish and cold foil stamping in one inline pass.

What materials can it run?

Paper packaging, folding cartons, labels, decal and flowered paper, and ceramic & glass decals, plus UV spot glazing.

Does it do cold foil and UV spot effects?

Yes. The rotary screen lays UV varnish or cold-foil adhesive exactly where wanted, cold foil is bonded to the coated areas, and inline UV curing locks the finish.

How accurate is the registration?

It uses stop-cylinder turning technology for offset-grade registration, run by a single operator from automatic feed to delivery.

How much does it cost and do you export?

Price depends on configuration — contact Indiacot for a quote. Built in Rajkot and supported across 50+ countries.
