Foil Fusing Machine

Perfect for printers already running screen-printing units who want to add hot, embossed and 3D foil. Foil adheres to cured UV glue for flat, tactile or 3D high-build effects. Electric + pneumatic, with a zero-foil-wastage foil saver, dual unwinder and IDH silicon roller for crisp embossing.

Function
Foil glazing
Working area
24 – 40 in
Speed
10–12 m/min
Heating
Infrared + oil
Get a Quote → WhatsApp us Call
Foil Fusing MachineFoil Fusing Machine
A What it's for

Built for these jobs.

Where the Foil Fusing Machine earns its place on the floor — the work it runs every day.

Screen printersPackaging & cartonsLabelsGreeting cardsCertificatesFolders
B How it works

From plain sheet to finish.

Four stages — the process in short.

01

Load sheet

Cured screen-printed sheet enters the fusing line.

02

Heat & fuse

Core heating + pneumatic pressure fuse foil to the glue.

03

Foil saver

Automated indexing jumps minimise foil wastage.

04

3D emboss

IDH silicon roller realises 3D high-build foil effects.

C See it in action

The machine, on our floor.

Live footage and a detail shot of the Foil Fusing Machine.

Foil Fusing Machine · running

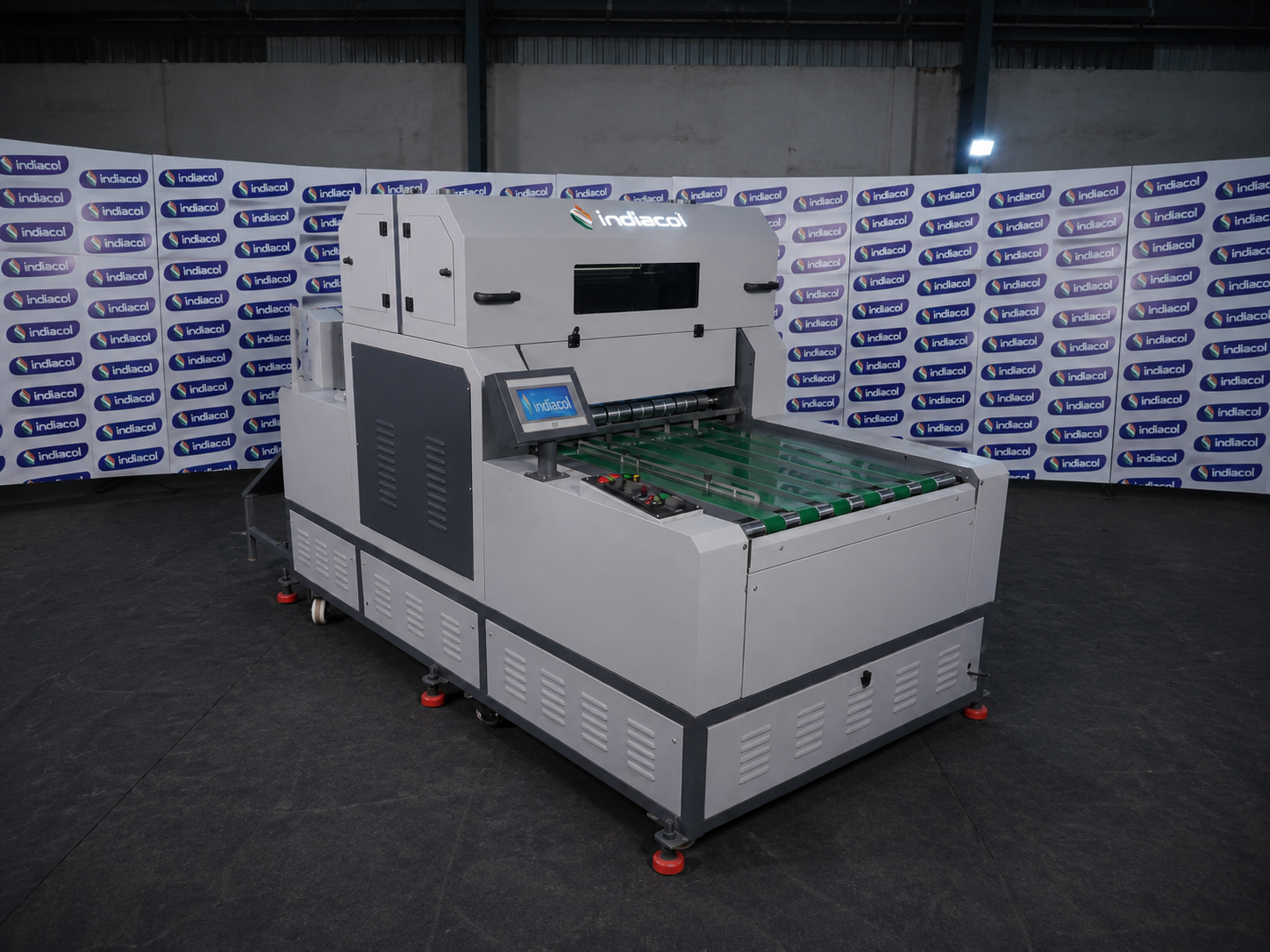

Foil Fusing Machine — front view
D Specifications

The technical sheet.

Indicative figures — exact configuration, sheet size and speed are quoted to your requirement.

Models26" / 32" / 42"
Working area24 / 30 / 40 in
FunctionFoil glazing
Thickness range110–500 gsm
Core size1 & 3 inch
Heating systemInfrared + oil based
Pressure systemPneumatic
OperationTouch screen panel
Foil-saving jumps10–20 inbuilt
Speed10–12 m/min
Warm-up time10–12 / 20–25 / 25–30 min
Working pressure1.5–2.5 / 1.5–3 / 1.5–4 bar
Dimensions (L×W×H)92"×44"×68" / 92"×50"×68" / 92"×66"×68"
Weight650 / 750 / 900 kg
Power source220 V / 50 Hz
Power consumption3.5 / 5 / 7 kW
E The output

Finishes it produces.

Real samples produced on Indiacot machines.

F Questions

Foil fusing — common questions.

What buyers ask most before choosing a foil fusing machine.

What is a foil fusing machine used for?

A foil fusing machine bonds metallic foil onto screen-printed sheets using heat and pneumatic pressure, adding hot, embossed and 3D high-build foil to packaging, cartons, labels, greeting cards, certificates and folders.

What is the difference between foil fusing and cold foil stamping?

Foil fusing applies foil over a screen-printed adhesive base with heat and pressure, which makes it ideal for raised 3D and embossed foil effects. Cold foil bonds foil inline on press with UV adhesive. The Foil Fusing Machine suits printers already running a screen-printing unit who want to add foil.

Which materials can the Foil Fusing Machine run?

Paper and board for packaging and cartons, labels, greeting cards, certificates and folders.

Can it produce 3D and embossed foil effects?

Yes. An IDH silicon roller produces 3D high-build foil, alongside standard hot and embossed foil finishes.

How much does a foil fusing machine cost?

Price depends on sheet size and configuration. Send Indiacot your substrate, sheet size and the finish you need, and they will share a configuration and quote.

Does Indiacot export the Foil Fusing Machine?

Yes. The machine is built in Rajkot, India and supported across 50+ countries.

Get a quote

Interested in the Foil Fusing Machine?

Send us your substrate, sheet size and the finish you're after — we'll come back with a configuration and price. Built in Rajkot, supported wherever you run it.
