Screen Printing Machine

An electric flat-bed screen printer for paper, board, membrane switches, flexible printed circuits (FPC) and nameplates. High-precision linear-rail guides, a vacuum platform and pneumatic snap-off deliver sharp, consistent prints in manual, semi-auto or full-auto modes — with lower energy consumption.

Max print
700 × 1000 mm
Modes
Manual / Semi / Full
Platform
Vacuum suction
Control
Touch screen
Get a Quote → WhatsApp us Call
Screen Printing MachineScreen Printing Machine
A What it's for

Built for these jobs.

Where the Screen Printing Machine earns its place on the floor — the work it runs every day.

Paper & boardMembrane switchesFPC circuitsNameplatesLabelsIndustrial print
B How it works

From plain sheet to finish.

Four stages — the process in short.

01

Load substrate

Vacuum platform holds the substrate flat and registered.

02

Register

High-precision linear-rail guides align the print.

03

Print

Squeegee with pneumatic snap-off lays an even, sharp print.

04

Frame lift

Motorised vertical lift removes the frame automatically.

C See it in action

The machine, on our floor.

Live footage and detail shots of the Screen Printing Machine.

Screen Printing Machine · running

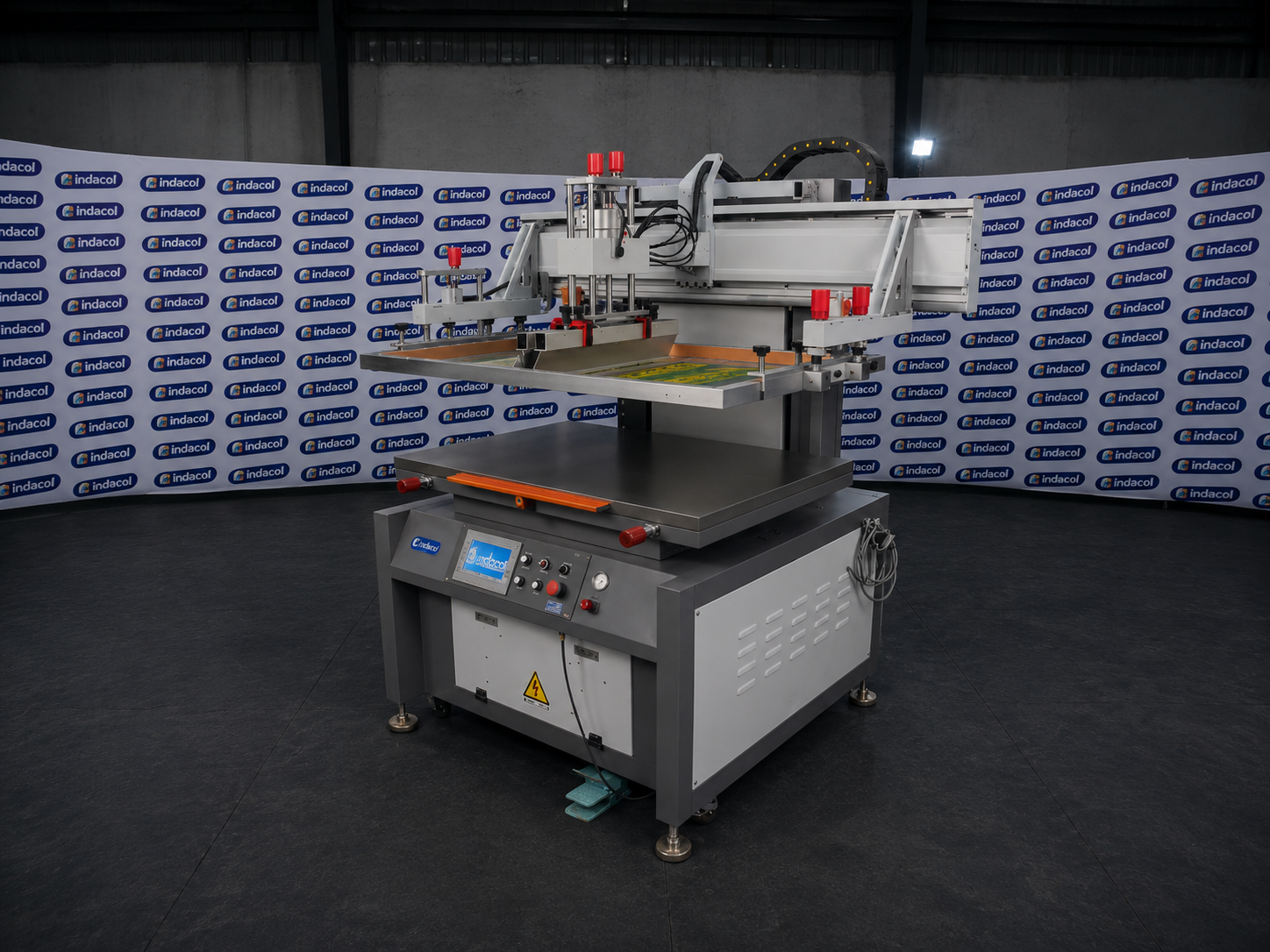

Screen Printing Machine — angle view

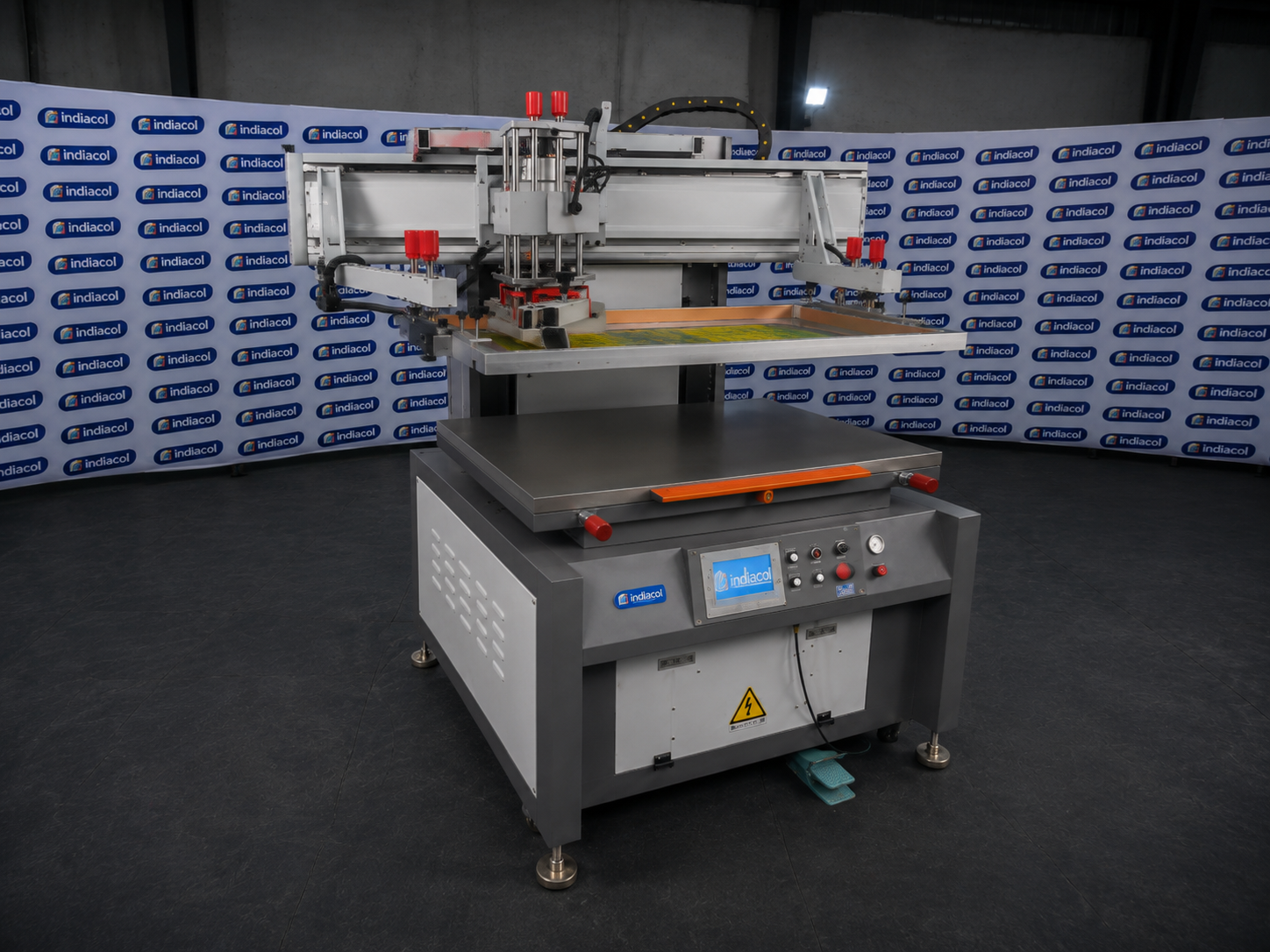

Screen Printing Machine — front view
D Specifications

The technical sheet.

Indicative figures — exact configuration, sheet size and speed are quoted to your requirement.

ModelsIc2336 / Ic2840
Max printing size600×900 / 700×1000 mm
Working table size700×1000 / 800×1100 mm
Max frame size900×1300 / 1000×1400 mm
Power supply415 V · 1.7 kW / 415 V · 2.7 kW
Working pressure5–8 KGF/M²
ModesManual · Semi-auto · Full-auto
ControlTouch screen, single-chip
GuidesHigh-precision linear rail
Dimensions (L×W×H)60"×45"×66" / 63"×48"×66"
Weight700 / 800 kg
E The output

Finishes it produces.

Real samples produced on Indiacot machines.

F Questions

Common questions.

What buyers ask most before choosing this machine.

What can the Screen Printing Machine print on?

Paper and board, membrane switches, flexible printed circuits (FPC), nameplates, labels and industrial print.

What operating modes does it offer?

Manual, semi-automatic or full-automatic operation.

What makes the print sharp and consistent?

High-precision linear-rail guides, a vacuum platform that holds the substrate flat, and a squeegee with pneumatic snap-off.

Is it energy efficient?

Yes — it is an electric flat-bed design with lower energy consumption, and a motorised vertical lift removes the frame automatically.

How much does it cost and do you export?

Price depends on configuration — contact Indiacot for a quote. Built in Rajkot and supported across 50+ countries.
