Home/Machines/Comp. Foil Fusing Machine
Foil Fusing · Compact

Comp. Foil Fusing Machine

The same foil-fusing performance in a compact footprint — built for tighter floors, shorter runs and label-shop production. Electric + pneumatic with a zero-foil-wastage foil saver, dual unwinder and IDH silicon roller for perfect embossing.

Function
Foil glazing
Working area
24 in
Footprint
Compact
Speed
10–12 m/min
Get a Quote → WhatsApp us Call
Comp. Foil Fusing MachineComp. Foil Fusing Machine
A What it's for

Built for these jobs.

Where the Comp. Foil Fusing Machine earns its place on the floor — the work it runs every day.

Label shopsShort-run packagingCards & invitationsCertificatesTagsFolders
B How it works

From plain sheet to finish.

Four stages — the process in short.

01

Load sheet

Cured screen-printed sheet enters the compact line.

02

Heat & fuse

Core heating + pneumatic pressure fuse foil to the glue.

03

Foil saver

Automated indexing jumps minimise foil wastage.

04

3D emboss

IDH silicon roller realises 3D high-build foil effects.

C See it in action

The machine, on our floor.

Live footage and detail shots of the Comp. Foil Fusing Machine.

Comp. Foil Fusing Machine · running

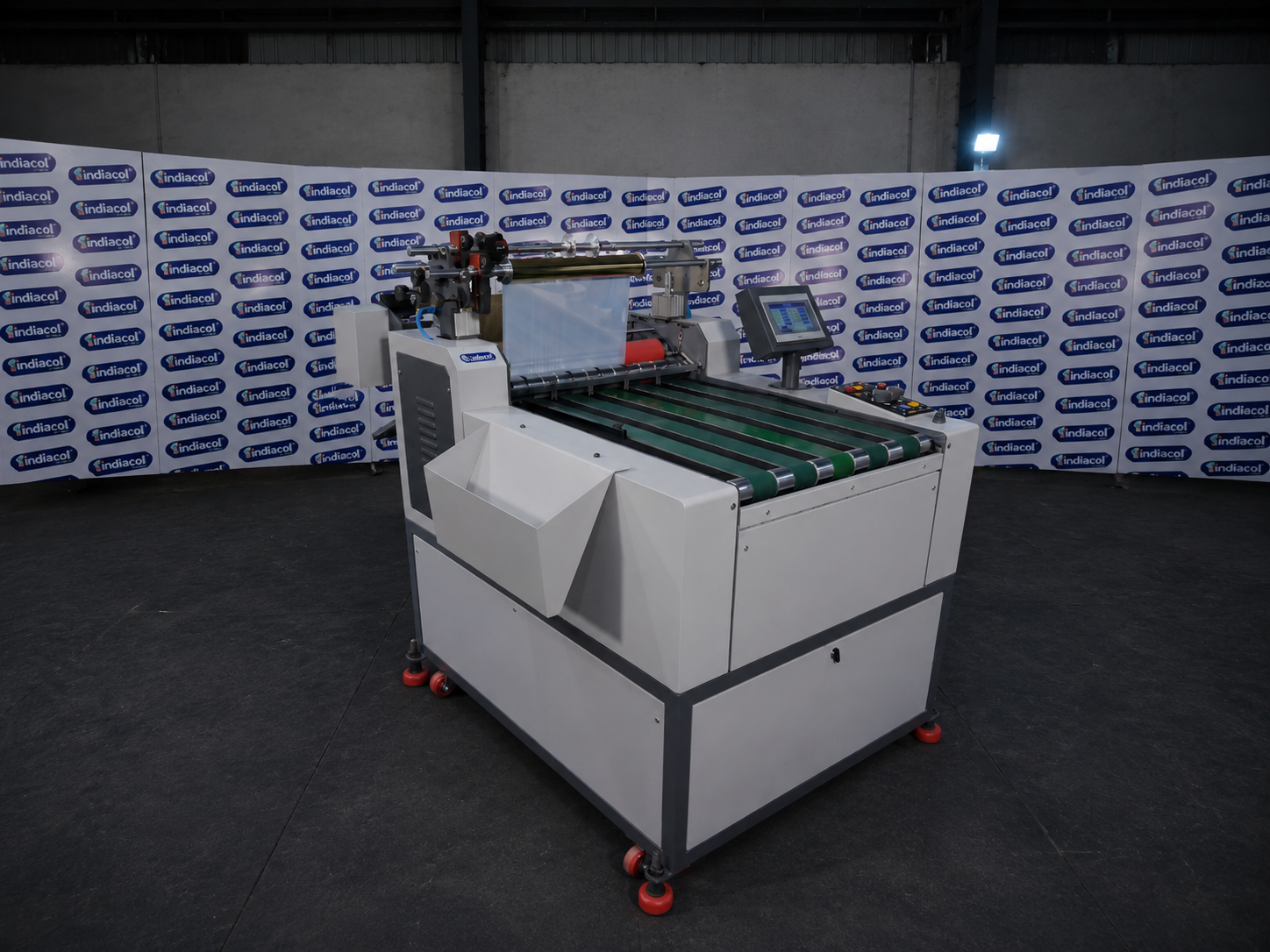

Comp. Foil Fusing Machine — angle view

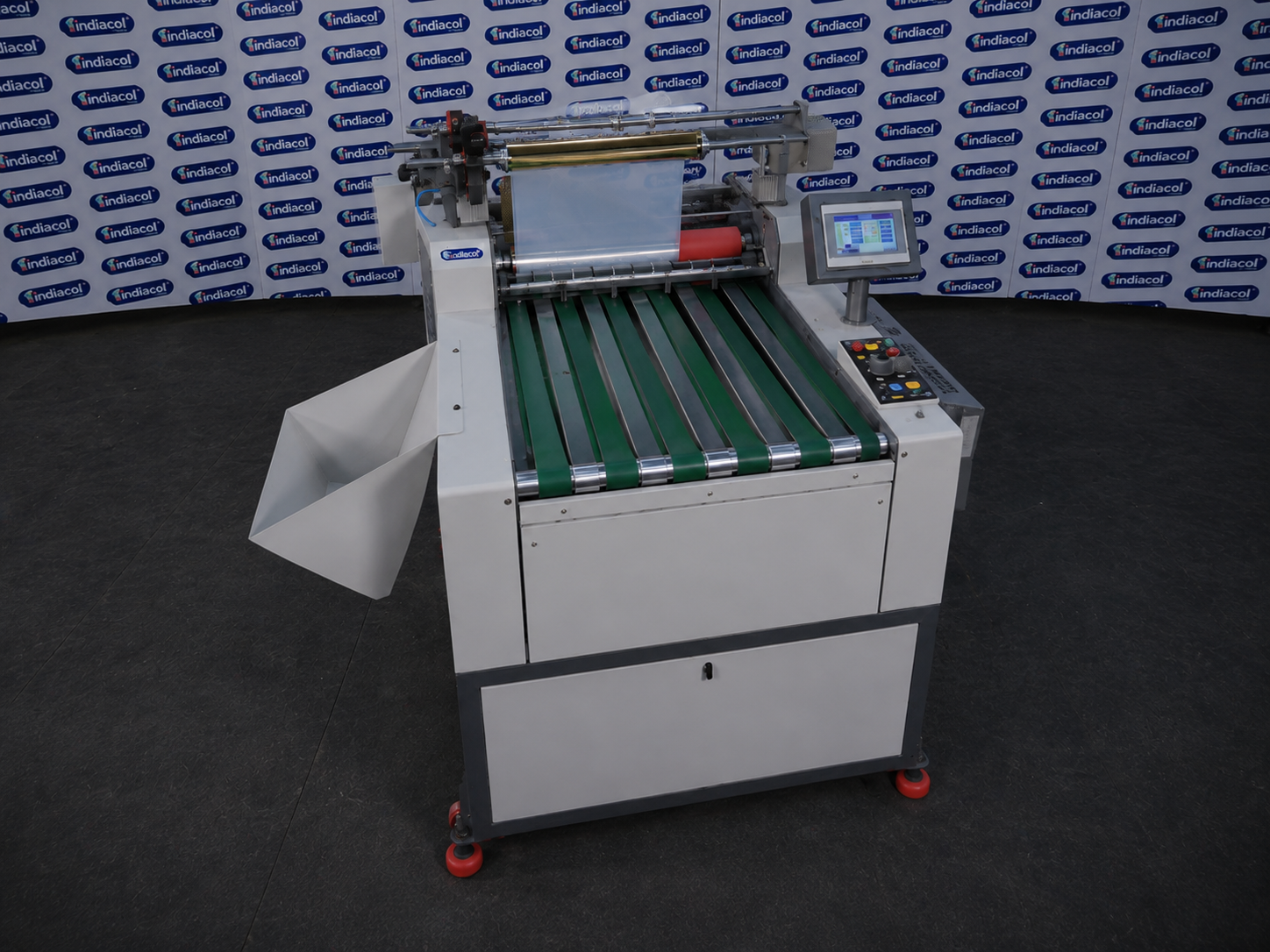

Comp. Foil Fusing Machine — front view
D Specifications

The technical sheet.

Indicative figures — exact configuration, sheet size and speed are quoted to your requirement.

Models15" / 26"
Working area24 in
FunctionFoil glazing
Thickness range110–500 gsm
Core size1 & 3 inch
Heating systemInfrared + oil based
Pressure systemPneumatic
OperationTouch screen panel
Foil-saving jumps10–20 inbuilt
Speed10–12 m/min
Warm-up time15–20 min
Working pressure1.5–2.5 bar
Dimensions (L×W×H)51"×29"×55" / 51"×39"×55"
Weight225 / 350 kg
Power source220 V / 50 Hz
Power consumption3.5 kW
E The output

Finishes it produces.

Real samples produced on Indiacot machines.

F Questions

Common questions.

What buyers ask most before choosing this machine.

What is the Comp. Foil Fusing Machine used for?

It delivers full foil-fusing performance in a compact footprint, adding hot, embossed and 3D foil to screen-printed sheets for label shops, short-run packaging, cards, invitations, certificates, tags and folders.

How is it different from the standard Foil Fusing Machine?

Same foil-fusing process in a smaller footprint for tighter floors and shorter runs. It runs on electric plus pneumatic operation with a zero-foil-wastage foil saver, dual unwinder and IDH silicon roller.

Can it produce 3D and embossed foil?

Yes. An IDH silicon roller produces 3D high-build and embossed foil effects.

Does it reduce foil wastage?

Yes. Automated indexing jumps and the foil saver minimise foil consumption.

How much does it cost and do you export?

Price depends on configuration — contact Indiacot for a quote. Built in Rajkot and supported across 50+ countries.
