Inline Foiling · Spot UV · Cast & Cure

i-Foil Online

The i-Foil Online is a foil-application system that attaches to an automatic screen press — combining automatic screen printing, a hybrid UV-LED dryer and a foiling section. Foil adheres to cured UV glue for flat, tactile or 3D effects, plus Spot UV and Cast & Cure — no dies, minimal foil waste, single operator.

Effects

Foil · Spot UV · Cast & Cure

Max sheet

700 × 1000 mm

Foiling speed

600–900 sheets/h

Operation

Single operator

Get a Quote → WhatsApp us Call

i-Foil Online · inline foiling

A What it's for

Built for these jobs.

Where the i-Foil Online earns its place on the floor — the work it runs every day.

In-house offset printersScreen printersPremium packagingLabels & cartonsInvitations & cardsCertificates

B How it works

From plain sheet to finish.

Four stages — the process in short.

Screen print

UV glue is screen-printed to the artwork on the automatic press.

LED cure

Hybrid UV-LED dryer with industrial chiller cures the glue (lamp life ~20,000 h).

Apply foil

Foiling section transfers foil to the cured glue — foil-saver minimises waste.

Spot UV & Cast

EPS UV lamp delivers Spot UV and high-gloss Cast & Cure effects.

C See it in action

The machine, on our floor.

Live footage and detail shots of the i-Foil Online inline foiling line.

i-Foil Online · running

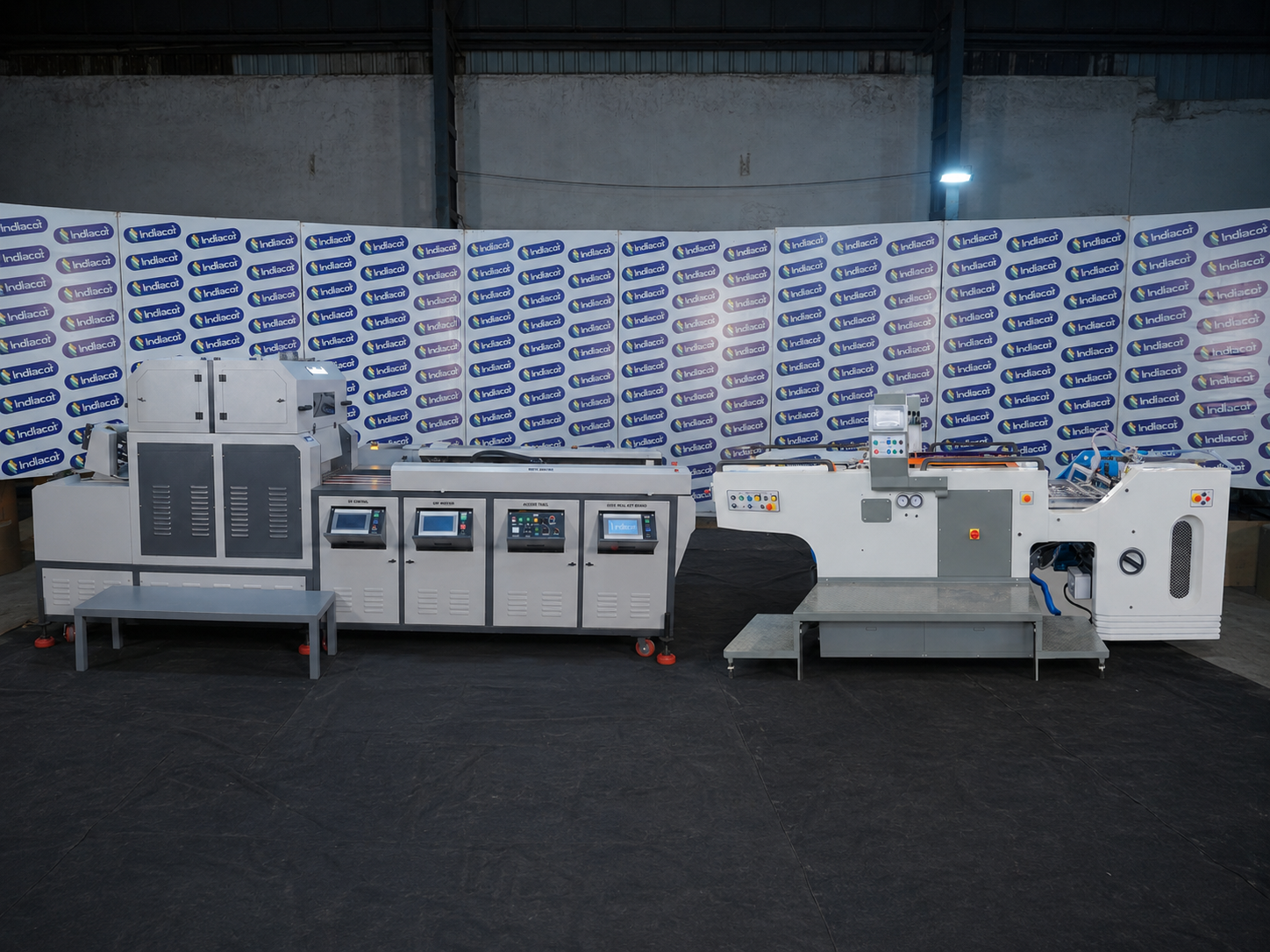

i-Foil Online inline foiling line — full view

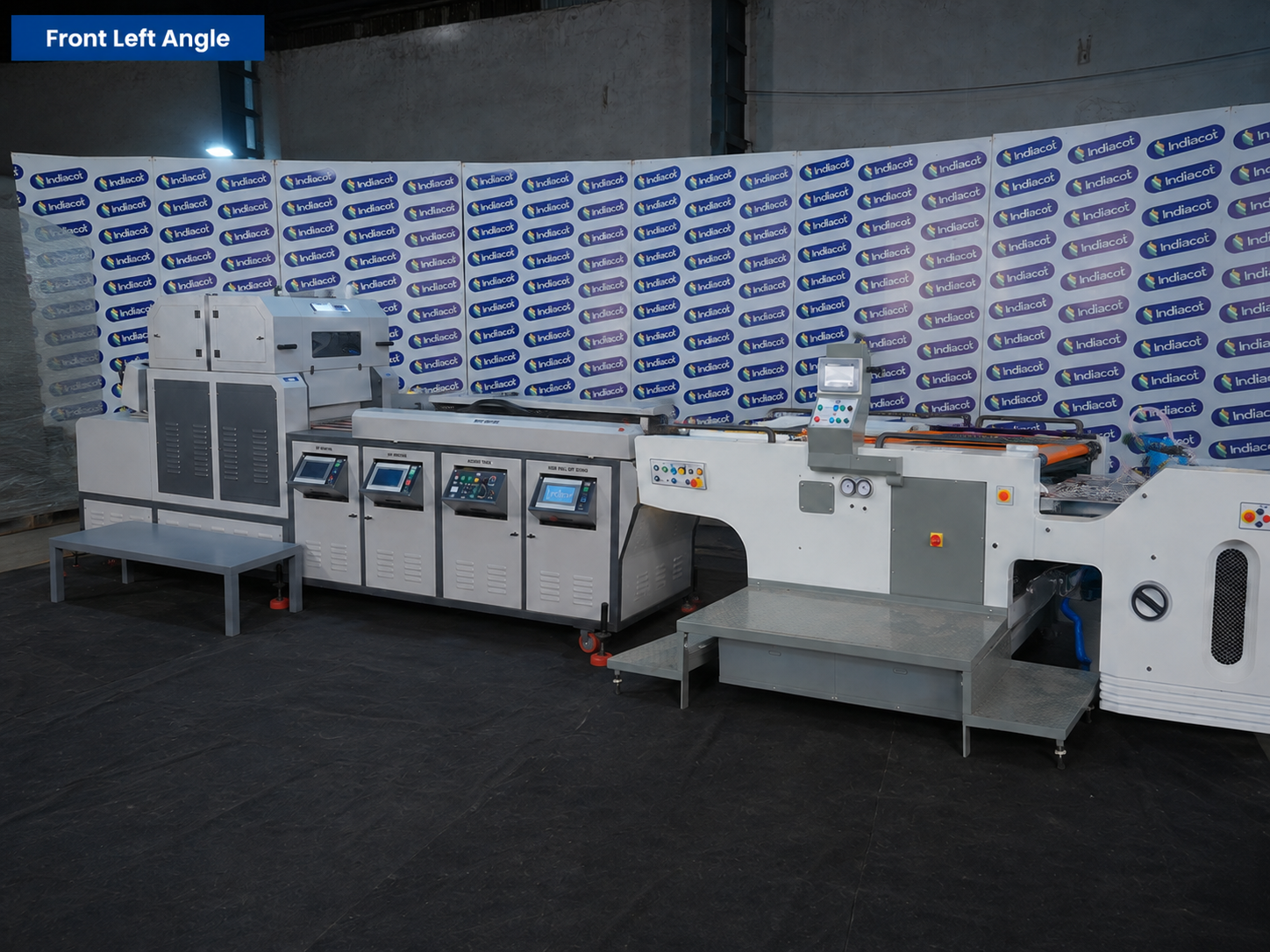

i-Foil Online inline foiling line — front left angle

D Specifications

The technical sheet.

Indicative figures — exact configuration, sheet size and speed are quoted to your requirement.

Models770 / 1010

Max sheet size510×770 / 700×1000 mm

Min sheet sizeDepends on screen model

Max foil temperature150 °C

Foil core1 & 3 inch

Foil width25 – 760 / 25 – 1010 mm

Foiling speed600–900 sheets/h

CuringLED + industrial chiller

Power supply440 V · 50–60 Hz · 3-phase

Power consumption22 / 25 kW

Working power10–13 / 13–15 kW

Dimensions (L×W×H)148"×51"×68" / 148"×59"×68"

Weight950 / 1100 kg

E The output

Finishes it produces.

Real samples produced on Indiacot machines.

Cast & Cure holographic

Foiled certificate

Cast on glassware

Get a quote

Interested in the i-Foil Online?

Send us your substrate, sheet size and the finish you're after — we'll come back with a configuration and price. Built in Rajkot, supported wherever you run it.
