Screen + Foil · Semi-Automatic

i-Foil Semi-Automatic

The i-Foil is a foil-application system combining a flatbed screen printing machine, a hybrid UV-LED dryer and a foiling section. Foil adheres to cured UV glue for flat, tactile or 3D effects — plus Spot UV and Cast & Cure, with no dies and minimal foil waste. Built for a single operator with a servo auto take-off.

Process
Screen → Foil
Max sheet
700 × 1000 mm
Foil saving
10–20 jumps
Operation
Touch screen
Get a Quote → WhatsApp us Call
i-Foil Semi-Automatici-Foil Semi-Automatic
A What it's for

Built for these jobs.

Where the i-Foil Semi-Automatic earns its place on the floor — the work it runs every day.

In-house offset printersInvitations & cardsPremium packagingLabelsCertificatesFolders & covers
B How it works

From plain sheet to finish.

Four stages — the process in short.

01

Flatbed print

Semi-automatic screen printing lays UV glue precisely.

02

Auto take-off

Servo-based take-off moves printed sheets smoothly.

03

LED cure

LED curing with industrial chiller for consistent results.

04

Foil + Cast

Foiling section adds foil, Spot UV and Cast & Cure.

C See it in action

The machine, on our floor.

Live footage and detail shots of the i-Foil Semi-Automatic foiling line.

i-Foil Semi-Automatic · running

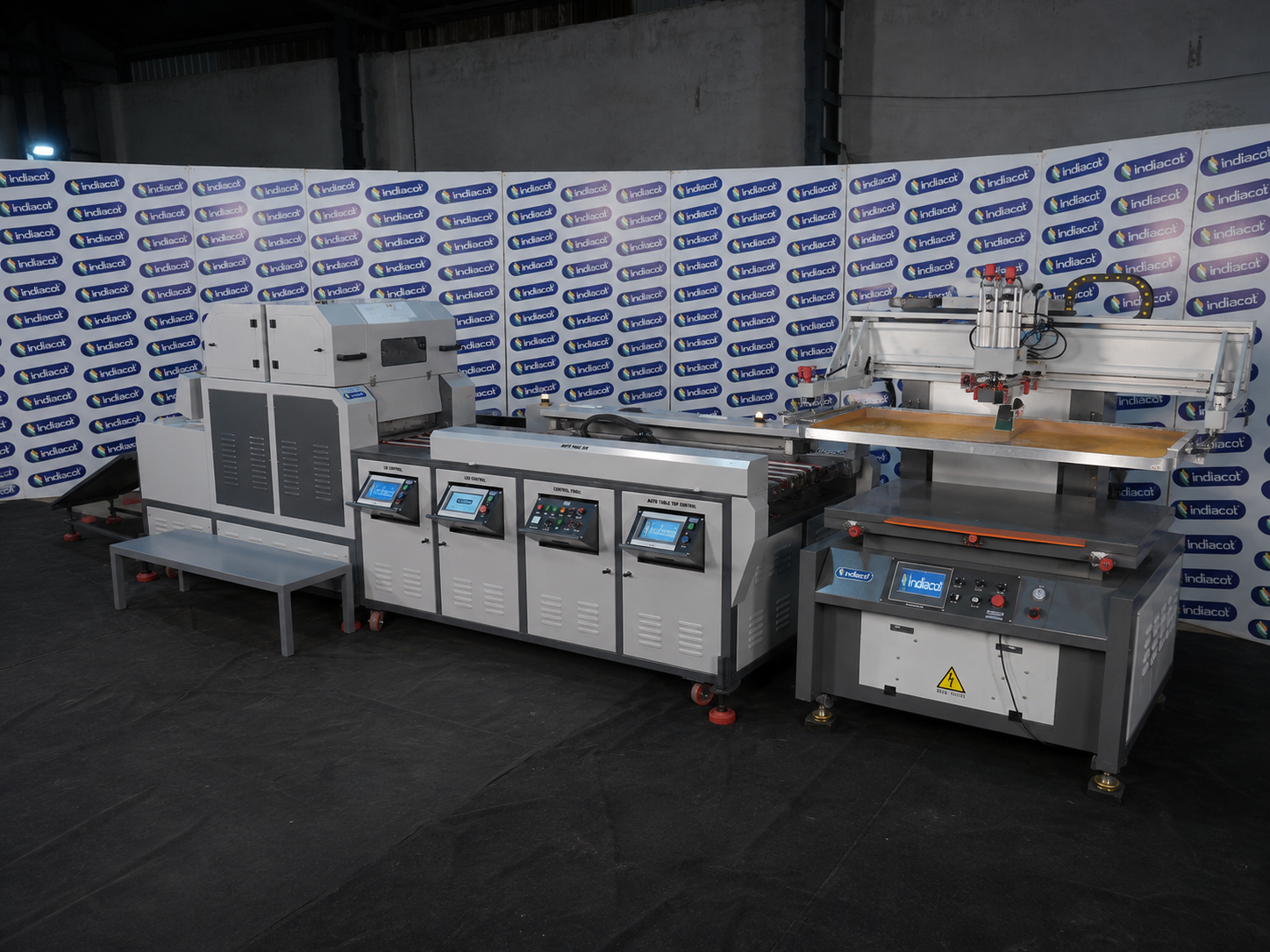

i-Foil Semi-Automatic foiling line — full view

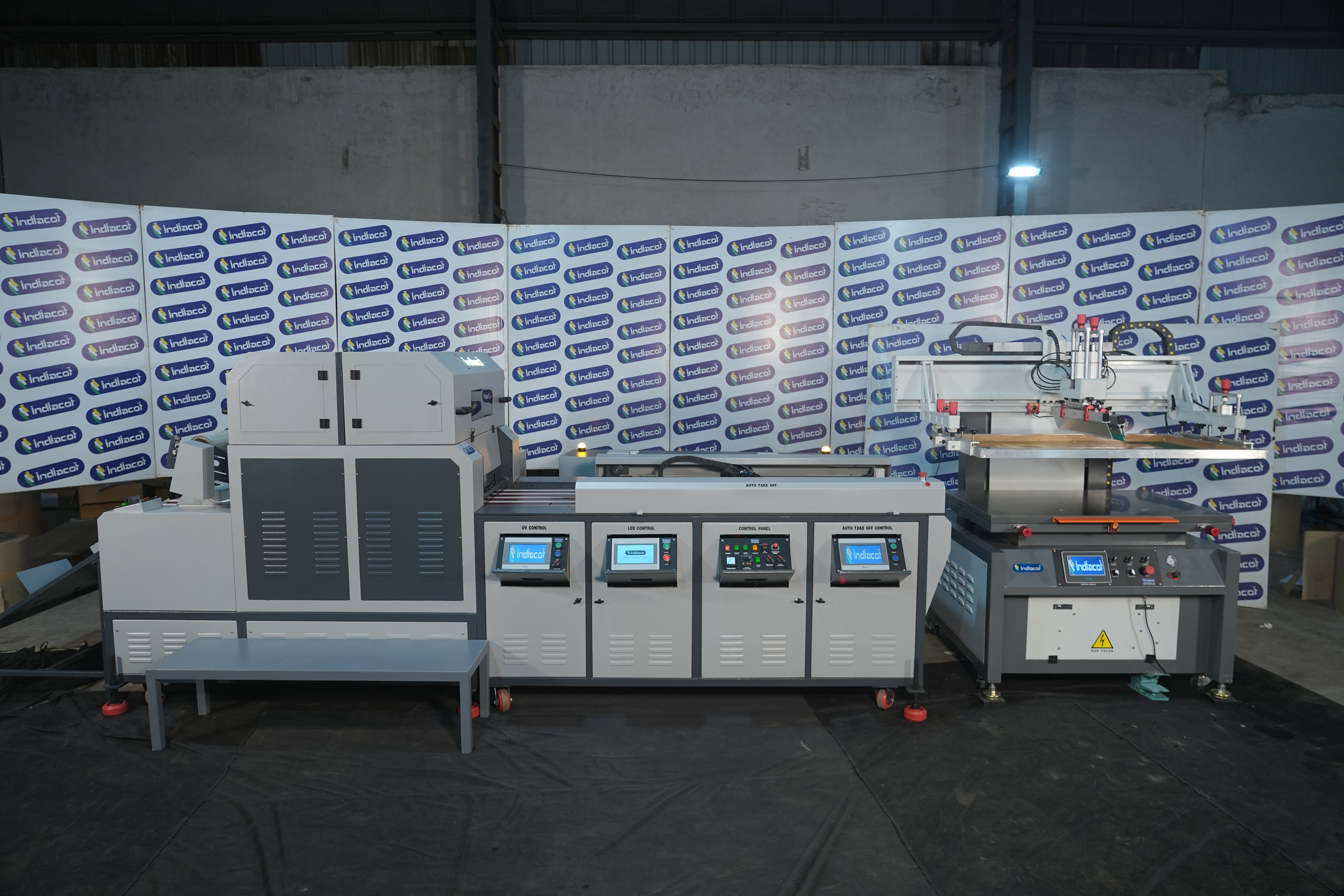

i-Foil Semi-Automatic foiling line — front view
D Specifications

The technical sheet.

Indicative figures — exact configuration, sheet size and speed are quoted to your requirement.

Models610 / 710
Working area24" / 30"
Heating systemInfrared + oil based
OperationTouch screen panel
Foil-saving jumps10–20 inbuilt
Warm-up time10–12 / 20–25 min
Min sheet size300×400 / 400×500 mm
Max sheet size600×900 / 700×1000 mm
Max foil temperature150 °C
Foil core1 & 3 inch
Max foil width580 / 690 mm
Speed600–900 sheets/h
Power supply440 V · 3-phase
Power consumption17 / 22 kW
Dimensions (L×W×H)230"×112"×75" / 230"×122"×75"
Weight1400 / 1700 kg
E The output

Finishes it produces.

Real samples produced on Indiacot machines.

Gold-foil invitations
Gold-foil invitations
Foiled invite
Foiled invite
Event invitation
Event invitation
Get a quote

Interested in the i-Foil Semi-Automatic?

Send us your substrate, sheet size and the finish you're after — we'll come back with a configuration and price. Built in Rajkot, supported wherever you run it.
