Lamination · Dual-Side Thermal

Lamination Machine

A dual-side thermal lamination machine for digital prints. A 2-roller system with mirror-chromed rollers gives high-gloss, feather-touch output; infrared + oil-based heating bonds even thicker films, with pneumatic pressure and a variable-speed drive for hassle-free long runs up to 3000 m.

Rollers
2 · mirror chromed
Temperature
75 – 120 °C
Film capacity
up to 3000 m
Substrate
90 – 500 gsm
Get a Quote → WhatsApp us Call
Dual-Side Thermal LaminationDual-Side Thermal Lamination
A What it's for

Built for these jobs.

Where the Lamination Machine earns its place on the floor — the work it runs every day.

Digital printsCovers & foldersBrochures & cataloguesPhoto printsCartonsBook covers
B How it works

From plain sheet to finish.

Four stages — the DUAL-SIDE process in short.

01

Load film

Up to 3000 m film roll mounts on the bearing-shaft unwinder.

02

Heat

Infrared + oil-based rollers reach accurate, even temperature.

03

Bond

Pneumatic roller pressure bonds film for feather-touch gloss.

04

Output

DC motor + gearbox drive a steady, variable-speed long run.

C See it in action

The machine, on our floor.

Live footage and detail shots of the Dual-Side Lamination Machine.

Dual-Side Lamination Machine · running

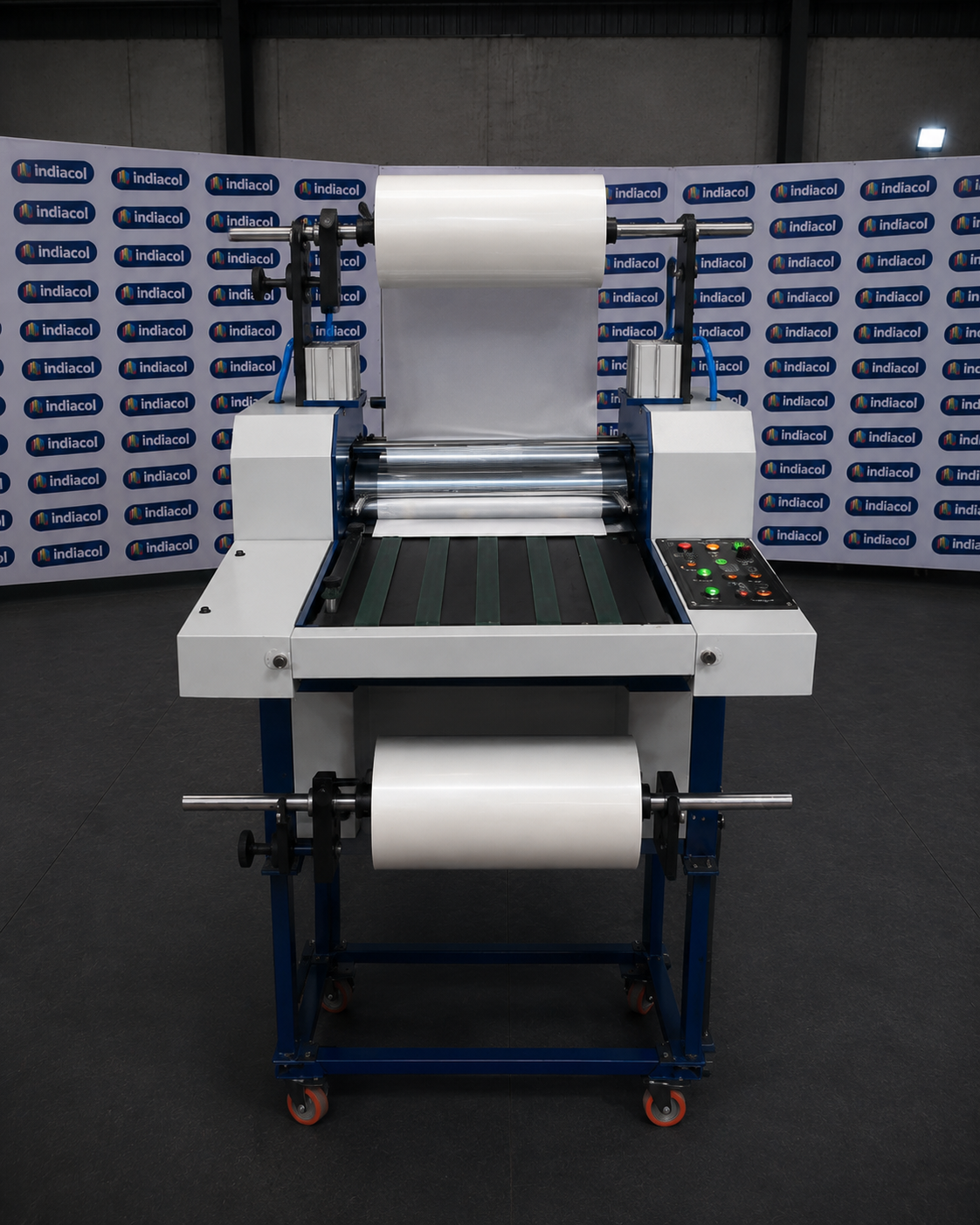

Dual-Side Lamination Machine — angle view

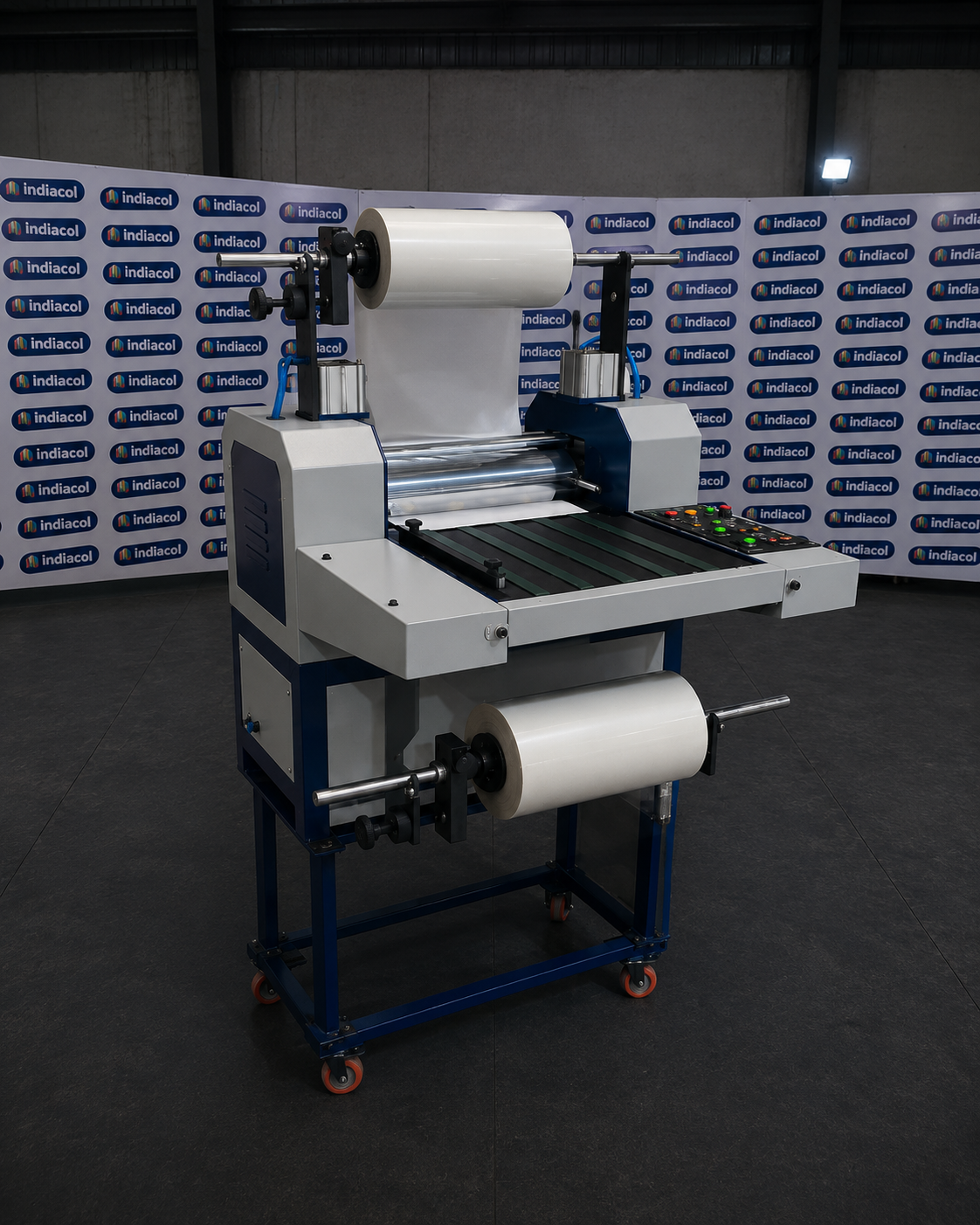

Dual-Side Lamination Machine — front view
D Specifications

The technical sheet.

Indicative figures — exact configuration, sheet size and speed are quoted to your requirement.

FunctionDual-side thermal lamination
Roller system2 roller · mirror chromed
Roller size15 inch
Working area13 inch
Roller OD75 mm
Lamination temperature75 – 120 °C
Heating systemInfrared + oil based
Pressure systemPneumatic
Lamination speed350 m / hour
Film capacityup to 3000 m
Substrate weight90 – 500 gsm
First heating time10 – 15 min
Speed controlJog dial
Power supply220 V / 50 Hz
Power consumption3.5 kW
Dimensions (L×W×H)28"×30"×60"
Weight95 kg
F Questions

Common questions.

What buyers ask most before choosing this machine.

What is this lamination machine for?

Dual-side thermal lamination of digital prints — covers, folders, brochures, catalogues, photo prints, cartons and book covers.

What finish does it give?

A 2-roller system with mirror-chromed rollers produces high-gloss, feather-touch output.

Can it handle thicker films?

Yes. Infrared plus oil-based heating bonds even thicker films, with pneumatic roller pressure and a variable-speed drive.

How long a run does it support?

Film rolls up to 3000 m mount on the bearing-shaft unwinder, for hassle-free long runs.

How much does it cost and do you export?

Price depends on configuration — contact Indiacot for a quote. Built in Rajkot and supported across 50+ countries.
